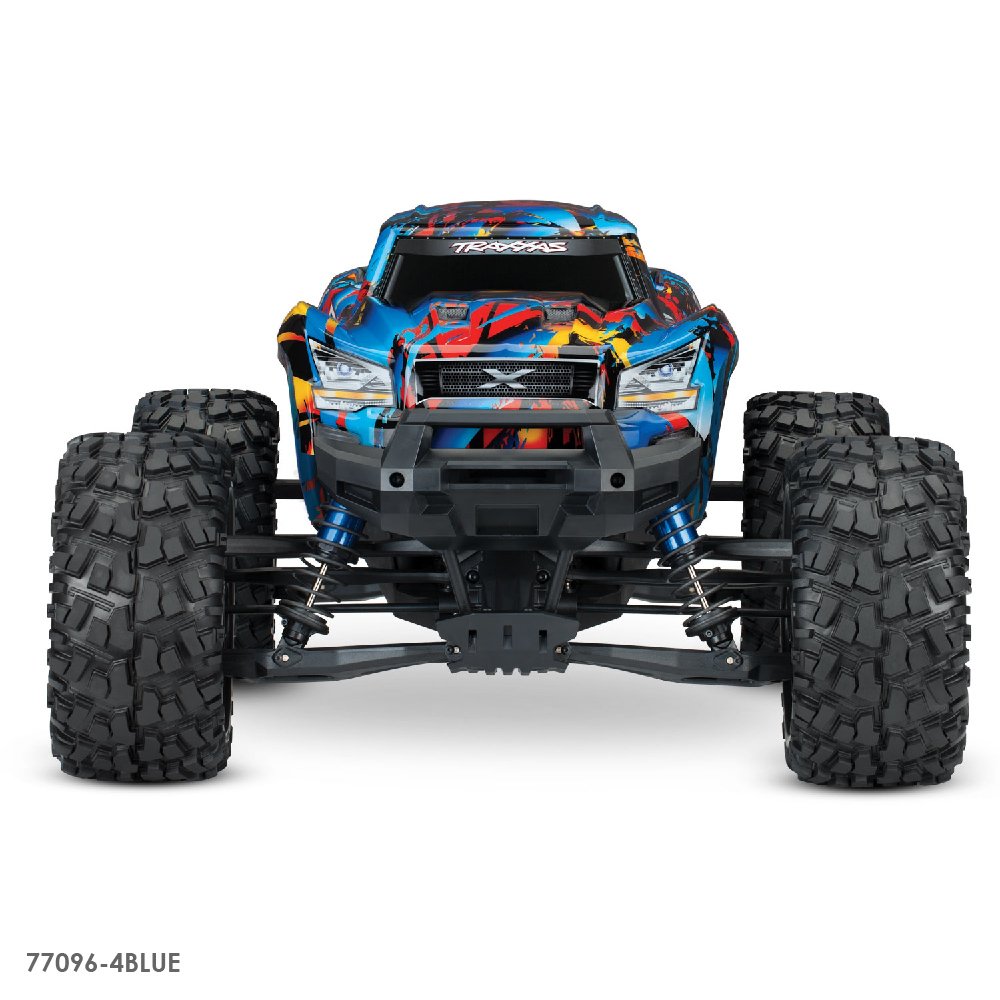

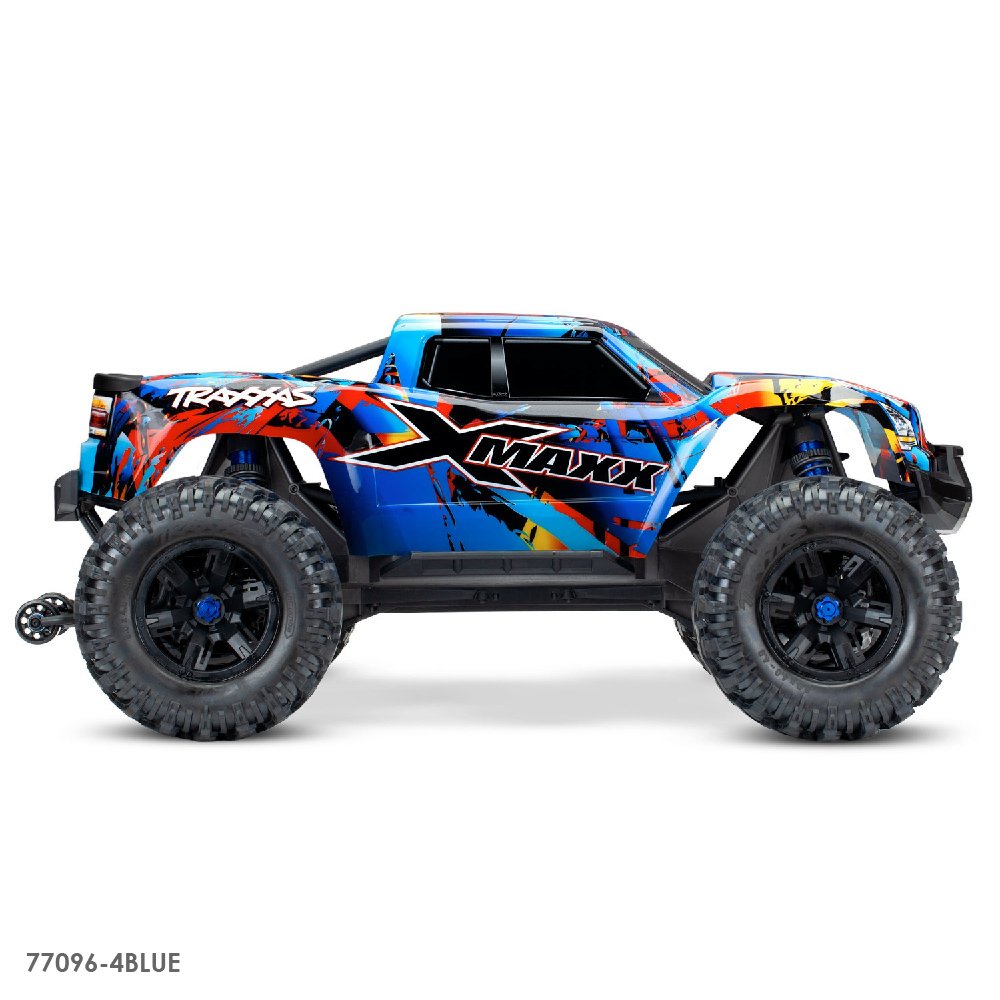

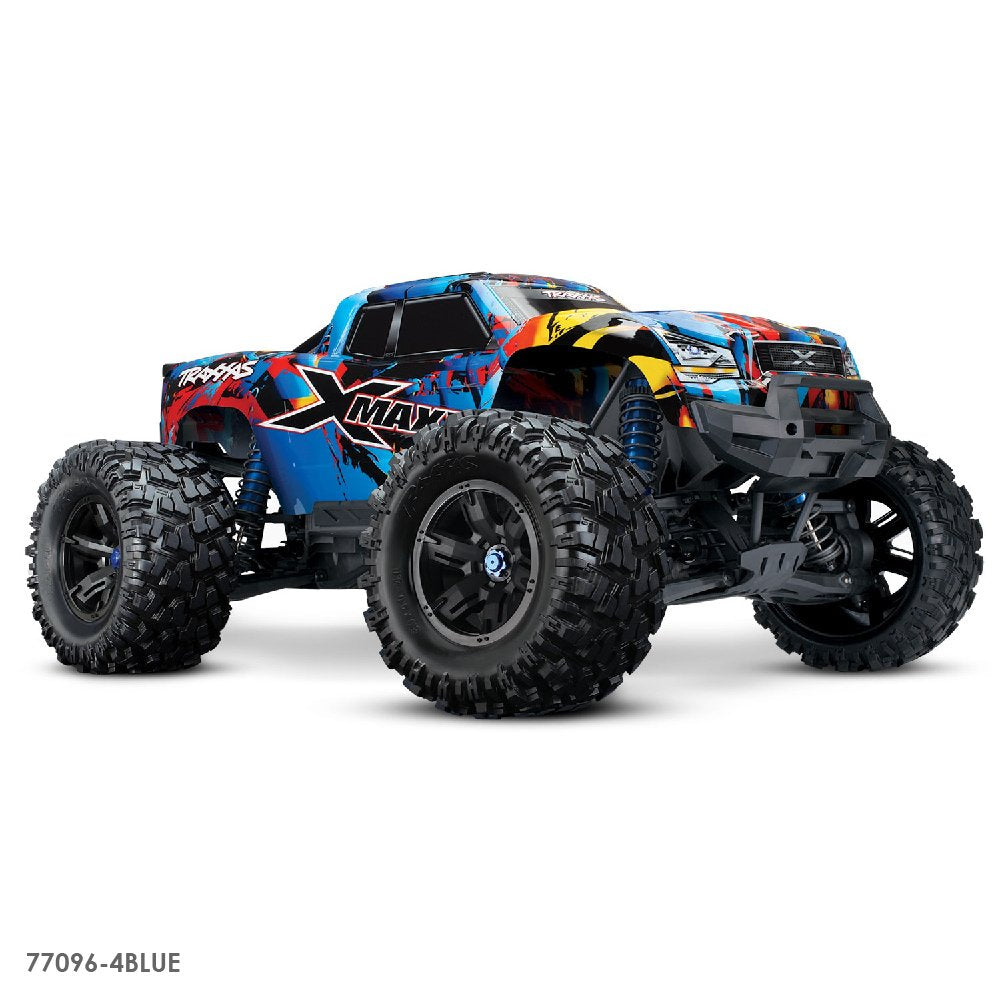

TRAXXAS X-MAXX 8S ESC BELTED - BLUE

TRAXXAS X-MAXX 8S ESC BELTED - BLUE

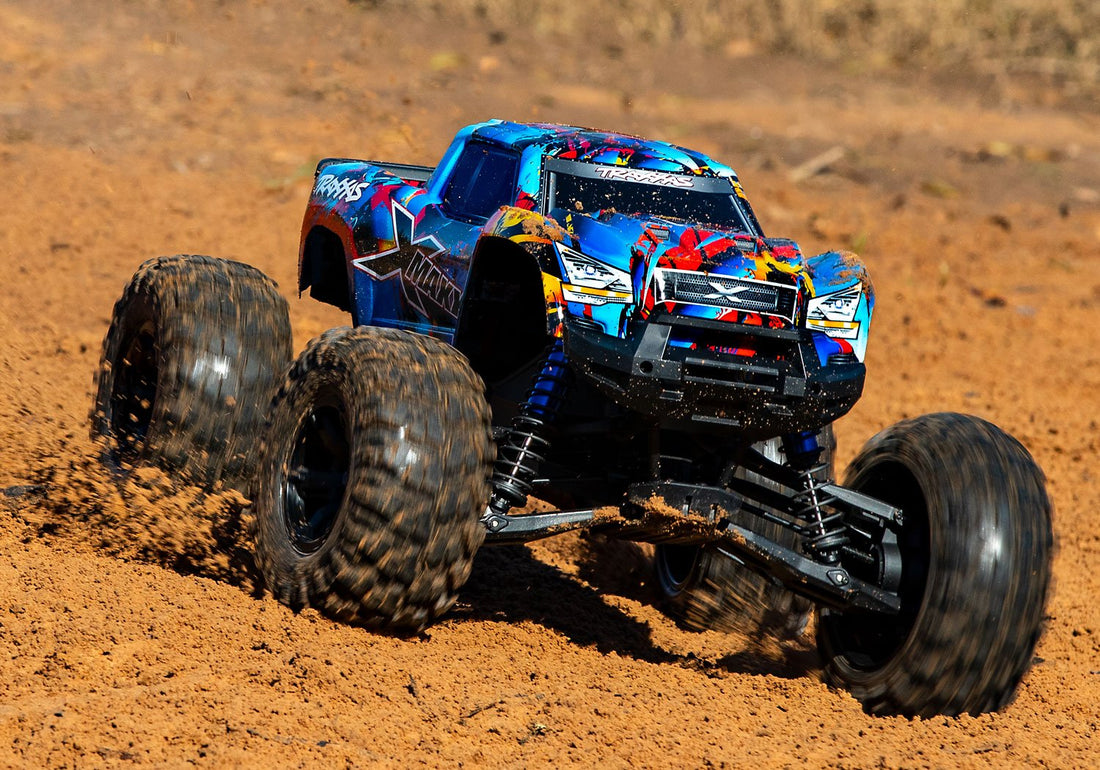

Unrelenting 4X4 power, mammoth size, and award-winning innovation make X-Maxx the ultimate monster truck. With 30+ volts of extreme 8s power, X-Maxx defies physics, unleashing jaw-dropping acceleration and 50+ mph speed. Belted Sledgehammer® tires conquer the most extreme terrain while providing unrivaled high-speed stability. Built to take brutal punishment in stride, X-Maxx is the definition of Traxxas Tough.

X-Maxx puts the power to the ground through tough all-steel drivetrain gears, the revolutionary Cush Drive system, and our strongest driveshafts ever. The Torque-Biasing Center Drive improves driveline durability and drives larger module ring and pinion gears on the toughest differentials we have ever produced.

What's in the box?

• X-Maxx, Ready-To-Race® model with Traxxas Big Block brushless motor
• VXL-8s waterproof electronic speed control with integrated telemetry
• Quick Start Guide
• TQi 2.4 GHz radio system
• High quality maintenance tools

What Youll Need:

• Batteries
  IMPORTANT: X-Maxx requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh or greater, Power Cell LiPo batteries with iD® are recommended (part 2890X).
• LiPo Balance Charger with iD®
  Traxxas EZ-Peak® Live 4s-capable charger is recommended for easy and fast charging performance (model 2971).
• AA Alkaline Batteries
  Four AA alkaline batteries for the transmitter.

Specifications:

• Skill Level: 6
• Scale: X-Truck
• Speed: 50+mph
• Power: Electric: 12+
• Tires: Belted Sledgehammer Tires (8.0x4.0 inches
• Brake Type: Electronic
• Drive System: Shaft-driven 4WD
• Steering: Bellcrank
• Radio System: TQi 2.4 GHz Transmitter with TSM® receiver
• Servo: Torque: 365 oz/in Speed: 0.17 sec/ 60° (6.0 V)
• Top Speed: 50+ MPH with two 4s LiPo batteries and optional gearing

Dimensions:

• Item Length - Without Packaging (cm) = 77.9
• Item Height - Without Packaging (cm) = 35
• Item Width - Without Packaging (cm) = 54
• Wheelbase (cm) = 48
• Ground Clearance (cm) = 10.2

Features

High Performance Aluminum Upgrades

• 6061-T6 aluminum C-hubs

• 6061-T6 aluminum steering blocks

• 6061-T6 aluminum rear hub carriers

• 6061-T6 aluminum differential housings

• 6061-T6 aluminum motor mounts

• 6061-T6 aluminum wheelie bar wheels

• Aluminum motor washers

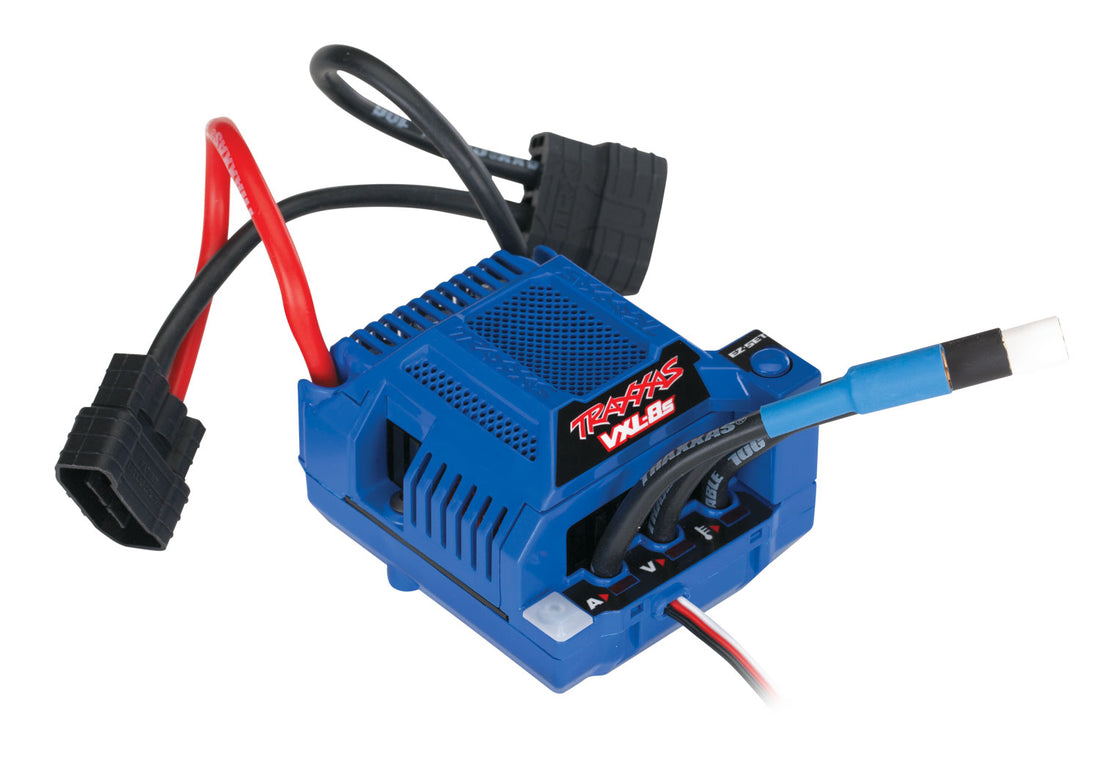

VXL-8s™ waterproof electronic speed control

• 8s LiPo compatible

• Built-in cooling fan

• Real-time telemetry via Traxxas Link™

• Machined heat sinks

• 10-gauge silicone wire

• Integrated protection circuits

• LED status lights

Velineon 1200XL Brushless Motor

• 4-pole 1275 kV

• 5 mm output shaft

• Aluminum slip-on heat sink

• Dual motor cooling fans

50+ mph with Two 4s LiPo Batteries and Included Optional Spur Gear

Traxxas Stability Management® (TSM)

• Helps prevents spinouts and loss of control

• Adjusts from off to 100% assistance from the transmitter

TQi™ 2.4 GHz 2-Channel Radio System with Wireless Module

• Factory-installed telemetry sensors

• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports

• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models

Clipless Body Mount System

• One-hand installation and removal

• Uses pivoting rear latch mechanism

• Eliminates body posts and clips

• Reinforced for extra protection

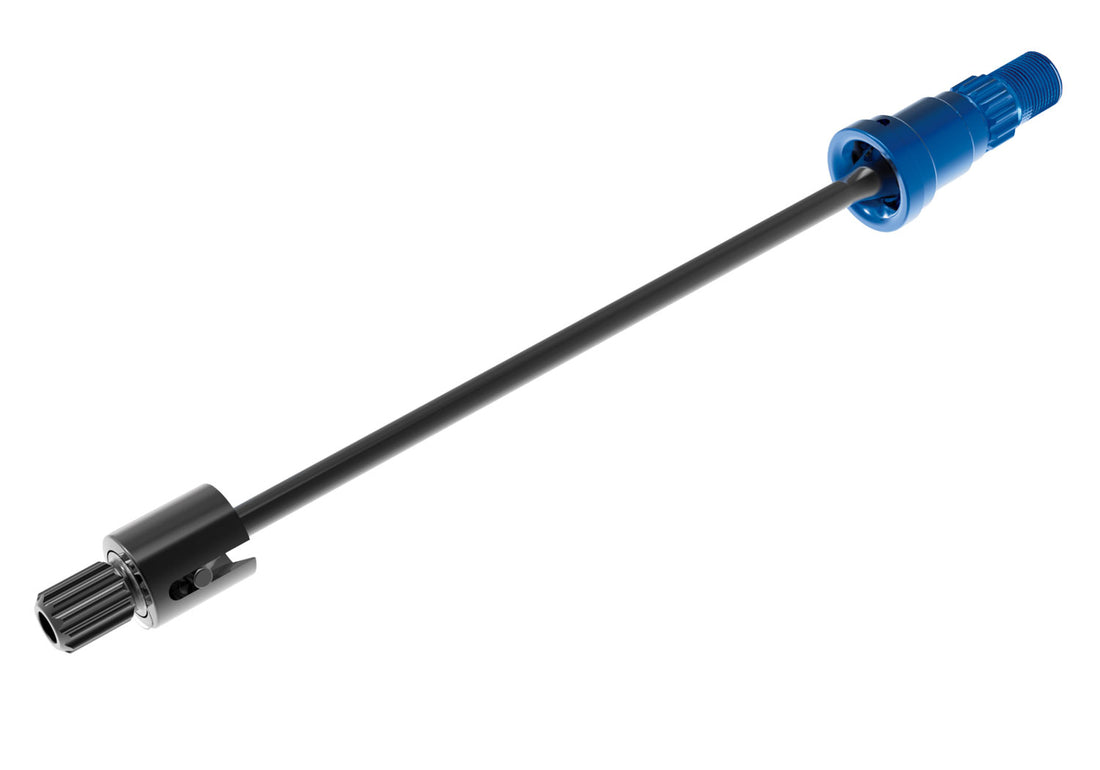

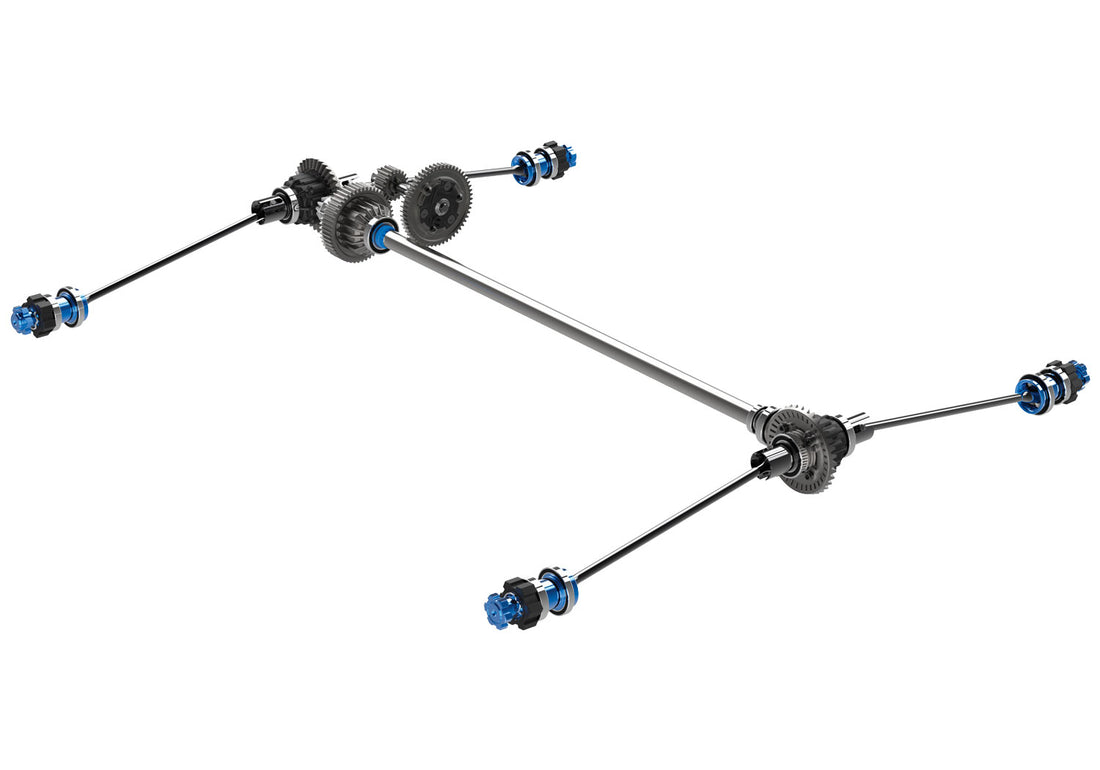

Drivetrain

• Full-time shaft-driven 4-wheel drive

• Machined, hardened steel pinion and spur gear

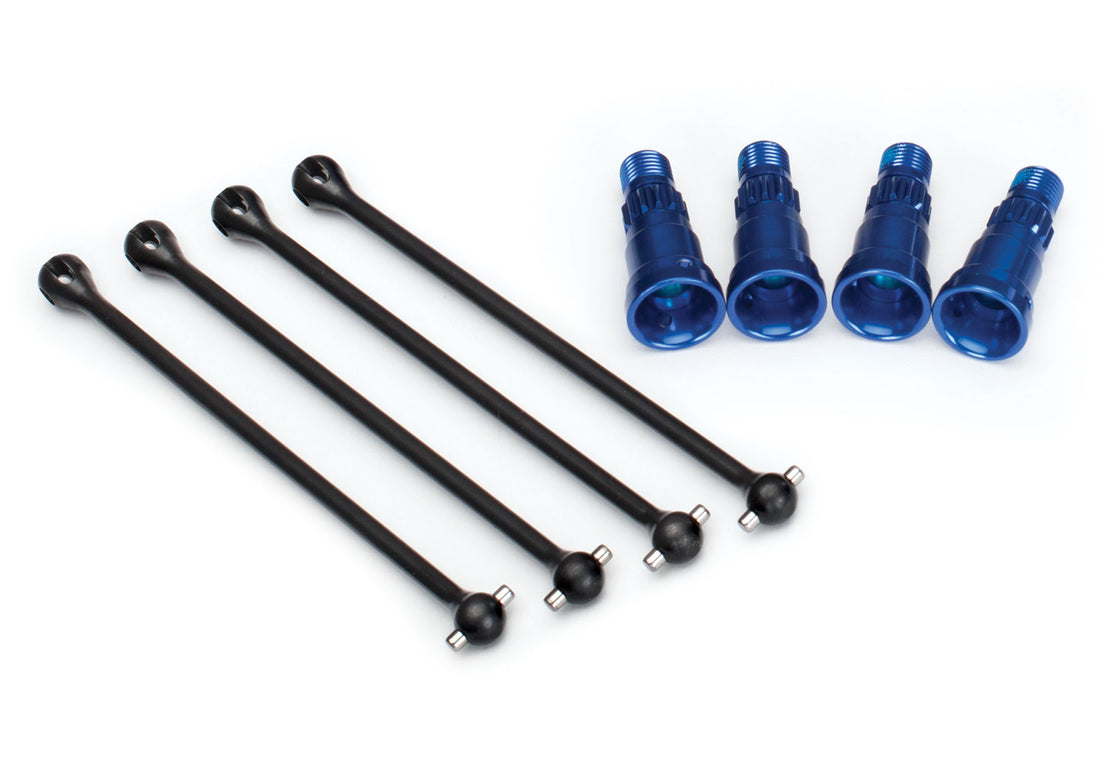

• All-metal gears and CV driveshafts

• Torque-Biasing Center Drive™ absorbs shocks and distributes power

• 24 mm splined wheel hexes

• Wheel hexes retained with a clip

• 17 mm hex on outside of wheel

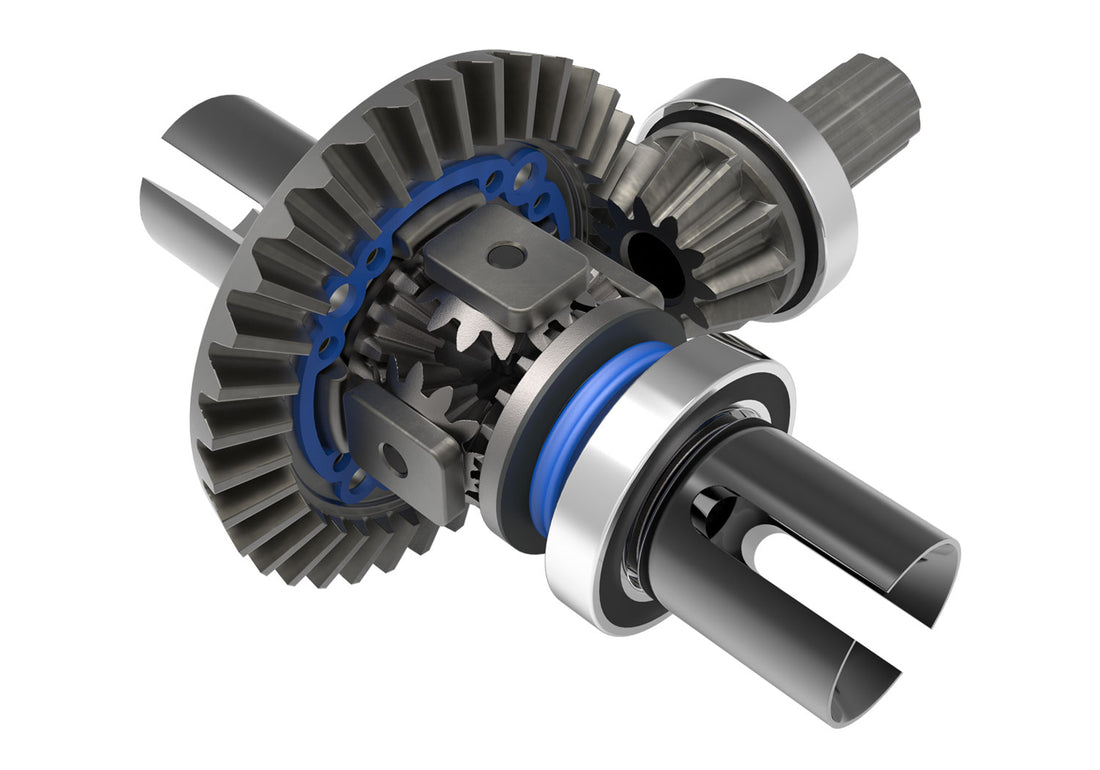

• Sealed, silicone fluid-filled diffs with large module ring and pinion gears

• Splined outdrives attached with external thru-bolt method

• Fully machined aluminum stub axles

• Splined aluminum center driveshaft

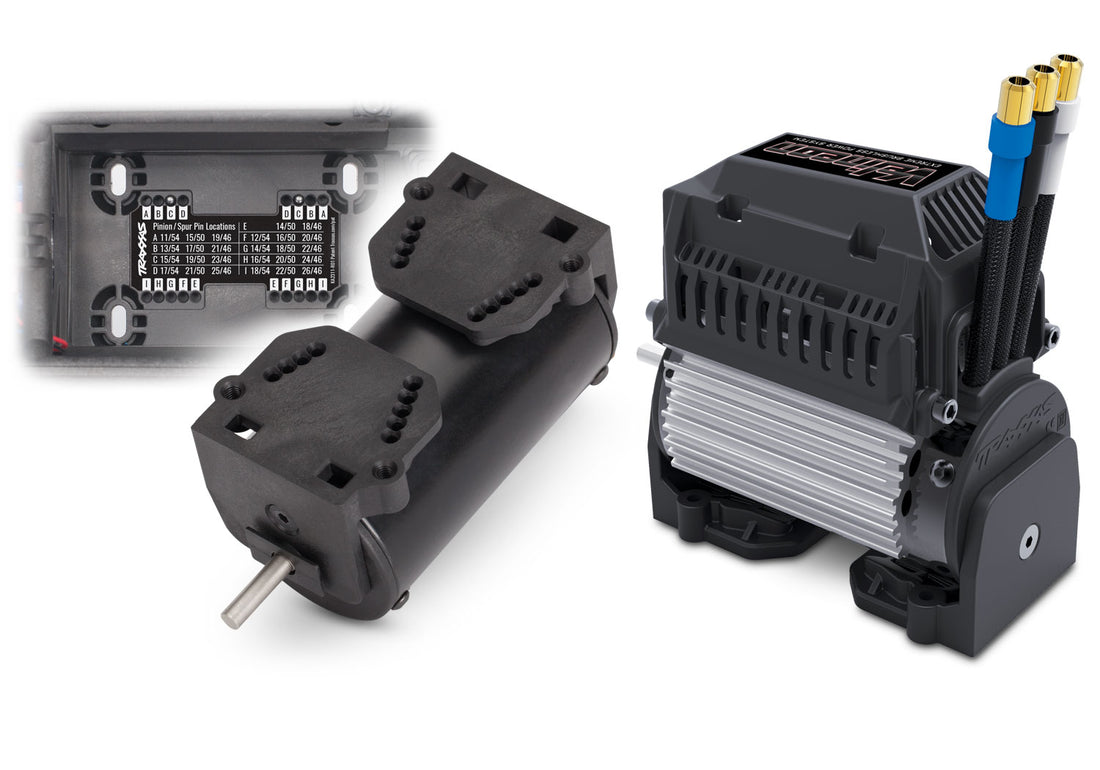

Fixed Motor Mounting System

• Rigid aluminum motor mounts

• Preset gear mesh adjustments

• No manual adjustments required

• Motor retention separate from gear mesh

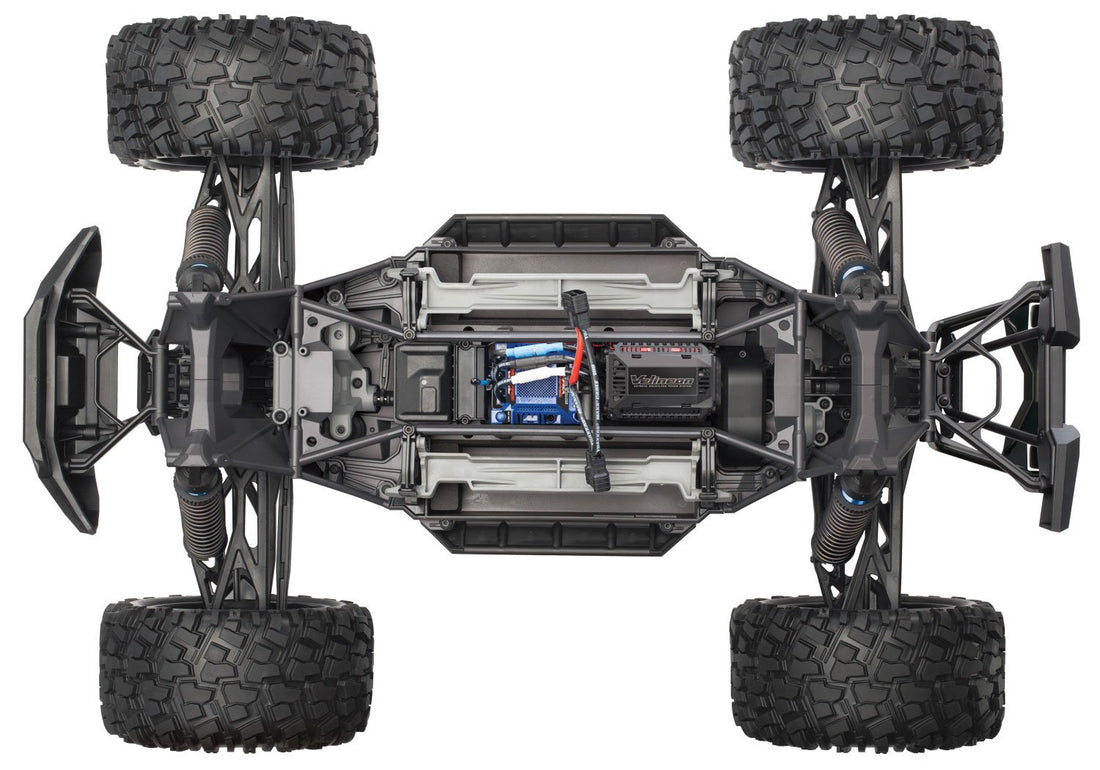

Modular Composite Chassis

• Modular chassis interlocks with front and rear bulkheads

• Motor mounts to rear bulkhead to eliminate gear crunching flex

• Easy to service and access components

• Driveline is sealed in the chassis to keep out dirt and grit

Snap-Lock Battery Retention System

• No body clips or hook and loop straps

• Battery hold-downs pivot for easy access

• Adjustable for battery size

• More secure than conventional retention systems

• Integrated into chassis top brace for improved battery tray and chassis stiffness

Steering

• 6061-T6 aluminum steering bellcranks

• 2085X high-output metal gear steering servo

• Double-shear aluminum servo horn

• Heavy-duty servo saver spring

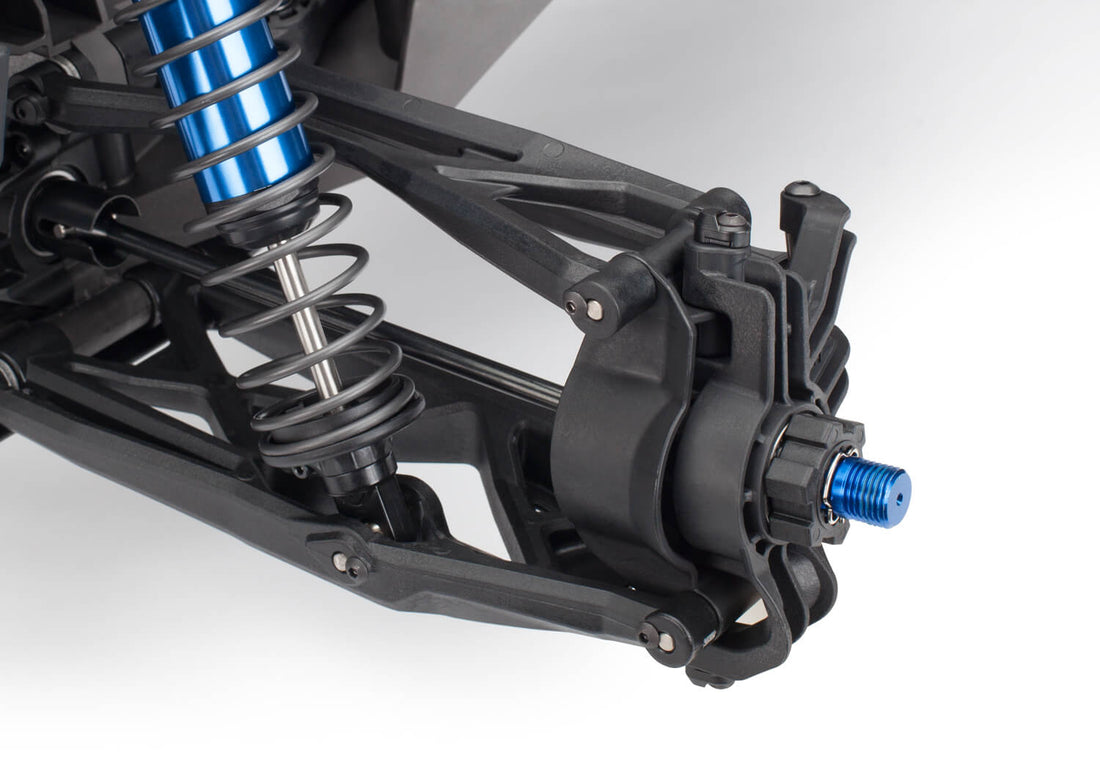

Suspension

• TUBES 7075-T6 Aluminum front toe links

• All critical suspension points have double shear strength

• High strength steel suspension pins with aluminum retainers

• Suspension pins retainers won’t come loose or “back-out”

• 4 mm machined pivot balls

• C-hub and steering block geometry maximizes steering angle

• Adjustable roll center

• Steel upper and lower tie bars

• Full contact sealed bearings used in exposed locations

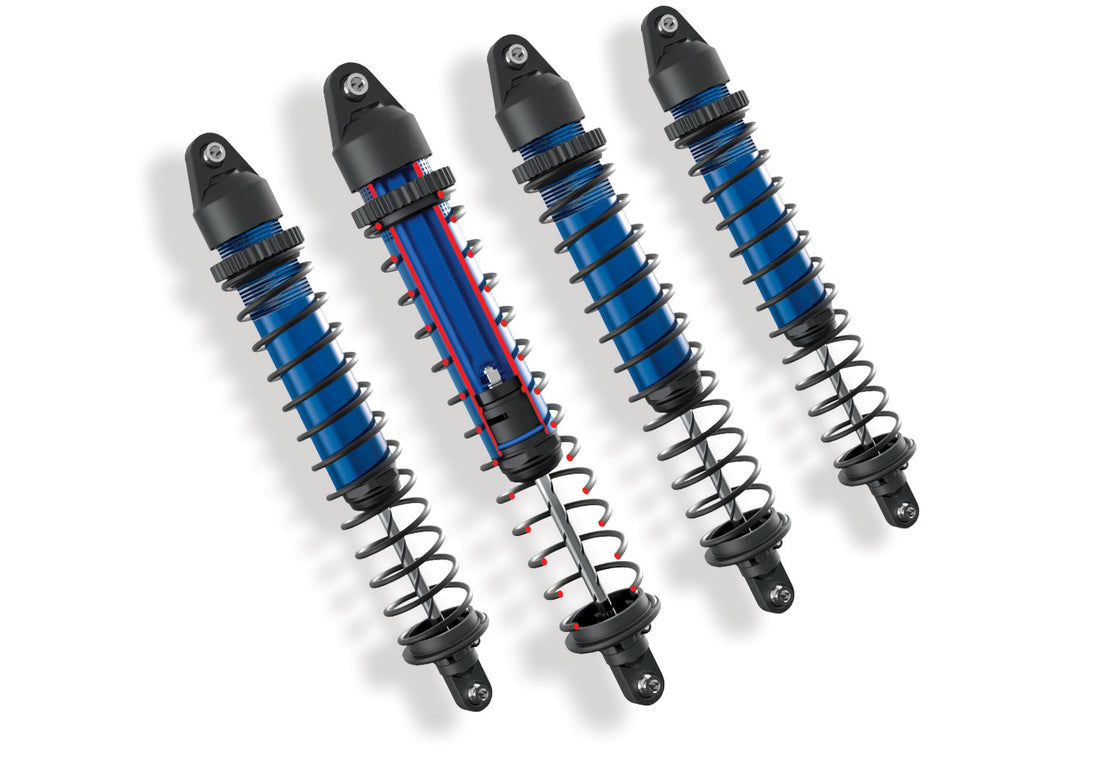

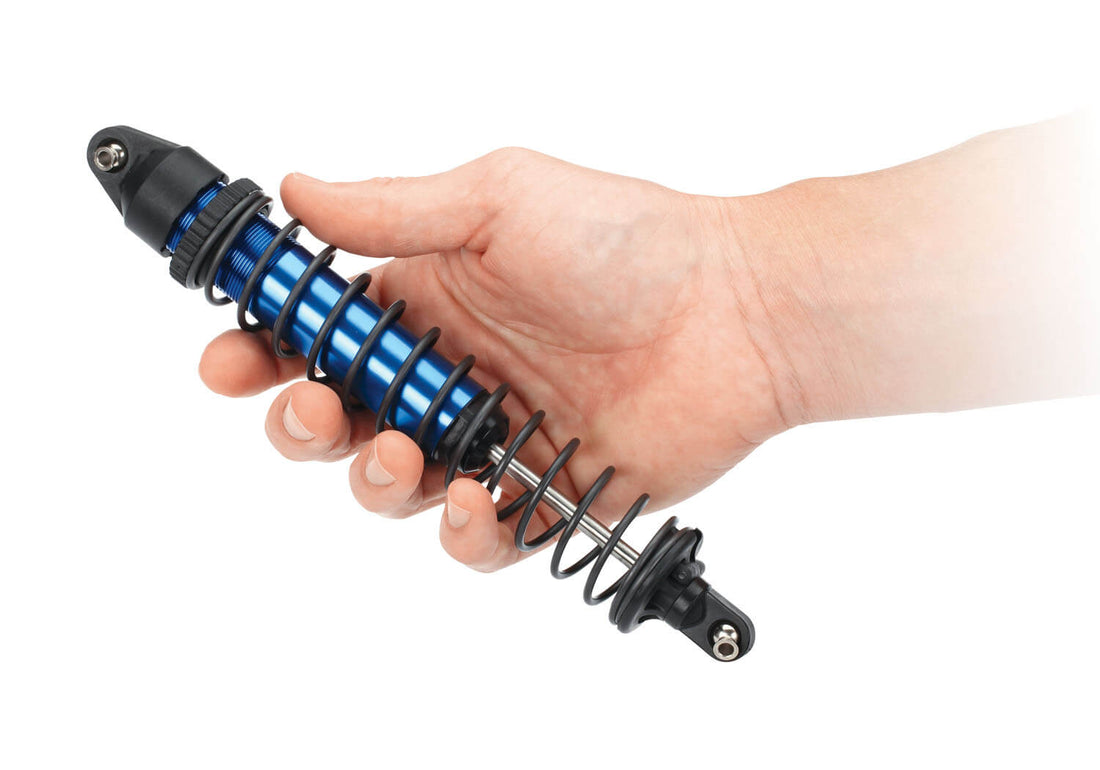

Aluminum GTX™ Shocks

• Machined aluminum threaded body

• Extra-large bore and capacity

• Ultra-smooth TiN-coated 5.2 mm damper shafts

• Lower seal cartridge includes integrated wiper seal combination

• Adjustable aluminum upper spring retainer

• Aluminum shock caps with pivot balls

• Fixed shock locations

• Lower spring perches bolted on

Bumpers

• Front energy absorbing rubber impact bumper

• Lower front and rear skids for impact and abrasion resistance

• Integrated nerf bars for side impact resistance

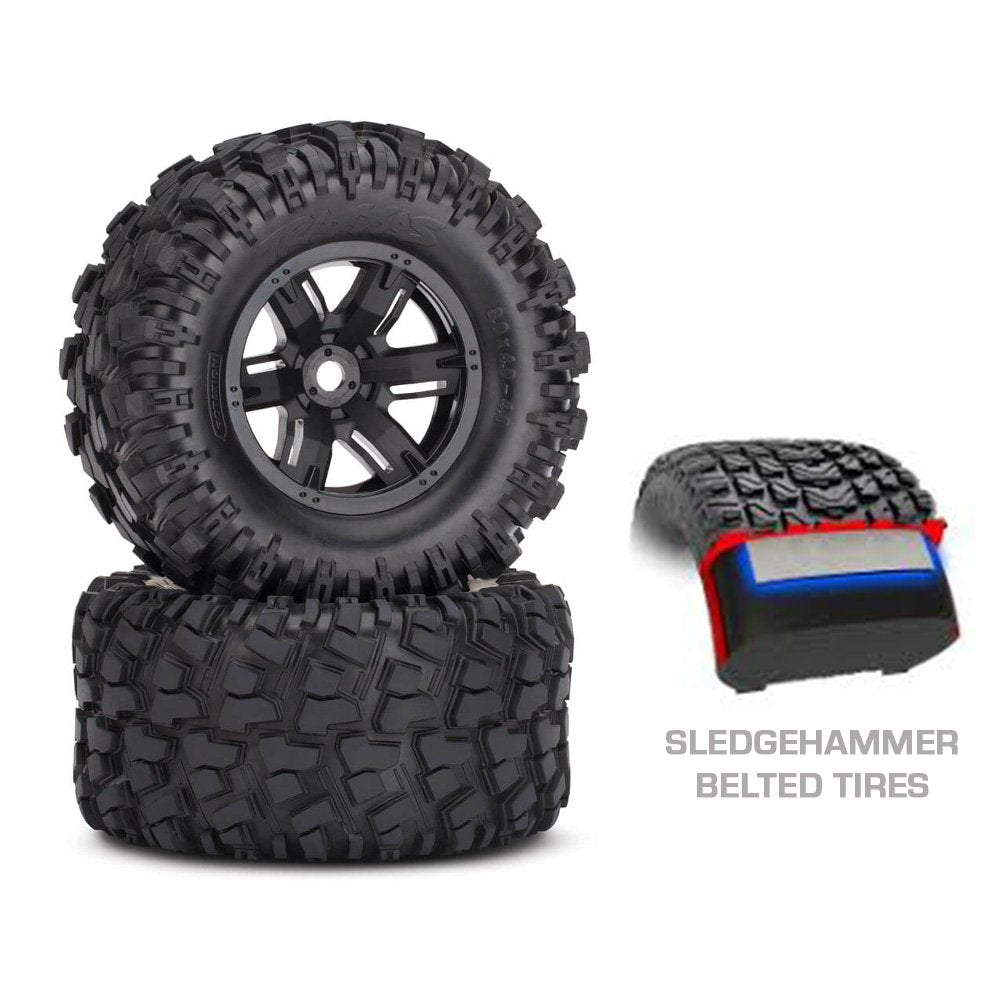

Massive 8.4″ Sledgehammer® belted tires

• Virtually eliminates ballooning at high speeds

• Open tread block design

• 2-piece foam insert

• High-strength glue and bead design

• Large, dual-diameter wheels
